PEMF comparison guide: High Gauss devices 2026

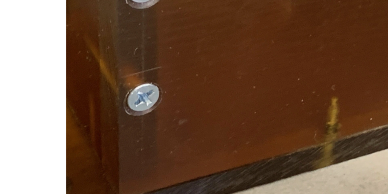

Ultem PEI spark housings /tungsten electrodes.

Ultem 1000 is the highest di-electric insulating plastic in an air spark gap (it insulates between 32-36KV per 1/4" thickness) and has the highest temperature at 340F and takes impact.

The pillar of durability, Tungsten does not pit like brass & stainless steel.

 The highest heat handling at high voltage/high current.

Which means consistent pulses.

One thing we see in repairs frequently are cracked or melted ABS or Acrylic Spark gap housings. Or Burnt up electrodes.

While most companies have custom or proprietary connector processes. This means trouble when a connector fails.

 If a coil connector fails, the factory is going to have you send it back. If they even repair it.

A specialized/ or secret repair process leaves you paying $300- minimum, add shipping costs and being down for a couple weeks.

Apex Magnetics uses a custom TPU grip, and a custom ABS strain relief which are inexpensive to replace. In the case of a connector failure, the Anderson connectors can be replaced with soldering tools.

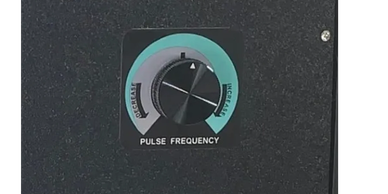

Adjustable Spark gap- Pulse frequency knob allows for tuning intensity.

-Gauss can be adjusted from 15,000 to 32,000 via the spark gap control knob. This variable pulse frequency allows tailoring low frequency roll off.

 The capacitor discharge being varied allows for less or more gauss per pulse. Apex Magnetics uses a dual spark gap, with an adjustable analog spark gap adjustment.

Many device manufacturers or distributors, have generic coil applicators.

Coils with no identifier for the positive or negative side of the coil.

This leads to inconsistent PEMF session parameters.

Apex Magnetics makes coils with TPU fittings, and custom + mark to identify the positive side of the coil.

You know what side of the field you are using.

TPU fittings and food grade silicone tubing are used to protect coil wires, for durability. No heat shrink that cracks or splits.

Many device distributors claim power or gauss.  Do they explain the numbers..

Apex provides the specifications and can back our power claims with voltages, currents, system type, and measured gauss.

With high slew rate, spark gap devices, which are the size and weight that high power requires.

Other companies do not explain how they achieve these gauss levels.

MagnaWave, Pulse Centers, Magnapulse etc. There is no published information on system specifications.

Example -Car Engines the manufacturer gives you engine size,  number of cylinders, horsepower, etc. There is no secrets.

CHEVY Camaro didn't just claim the engine is 350 HP, they explained it.
